The full name of TFT is Thin Film Transistor. Each pixel on TFT display is driven by a thin film transistor, The TFT display is a type of active matrix liquid crystal display device.

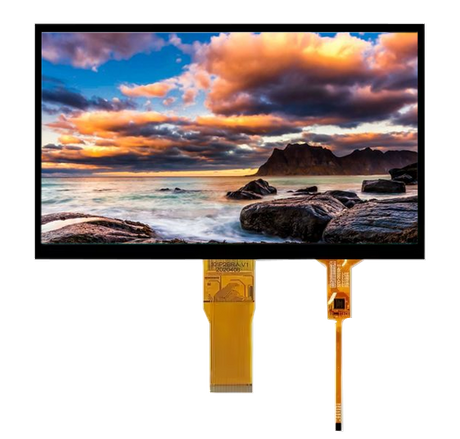

Description | 10.1 inch TFT LCD display |
Outline size | 265.00*179.50*4.5mm |
Active area | 216.96*135.6mm |
Resolution | 1280*800 |
Driving IC | NT35521VH |
Interface | MIPI |
Driving Voltage | 3.3V |
| Viewing direction | All |
Backlight | LED*20,white |
Operating temperature | -20~70 ℃ |
Storage temperature | -30~80 ℃ |
