The full name of TFT is Thin Film Transistor. Each pixel on TFT display is driven by a thin film transistor, The TFT display is a type of active matrix liquid crystal display device.

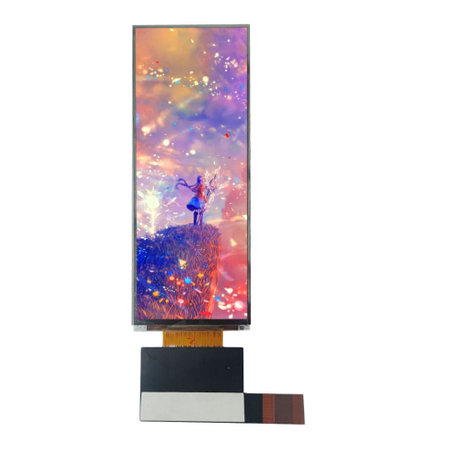

Description | 6.86 inch TFT LCD display |
Outline size | 72.42*173.79*6.45mm |
Active area | 60.19*160.51mm |
Resolution | 480*1280 |
Driving IC | ICNL9707 |
Interface | MIPI |
Driving Voltage | 3.3V |
| Viewing direction | All |
Backlight | LED*12,white |
Operating temperature | -20~70 ℃ |
Storage temperature | -30~80 ℃ |
