0.99" TFT display

Availability:
Quantity:
  • HZ099BPBG

  • 128*115

  • 26.17*26.22*1.86

  • 24.36*21.89

  • 24.36*21.89

  • GC9107

  • HZ099BPBG01C.pdf

The full name of TFT is Thin Film Transistor. Each pixel on TFT display is driven by a thin film transistor, The TFT display is a type of active matrix liquid crystal display device.


Description

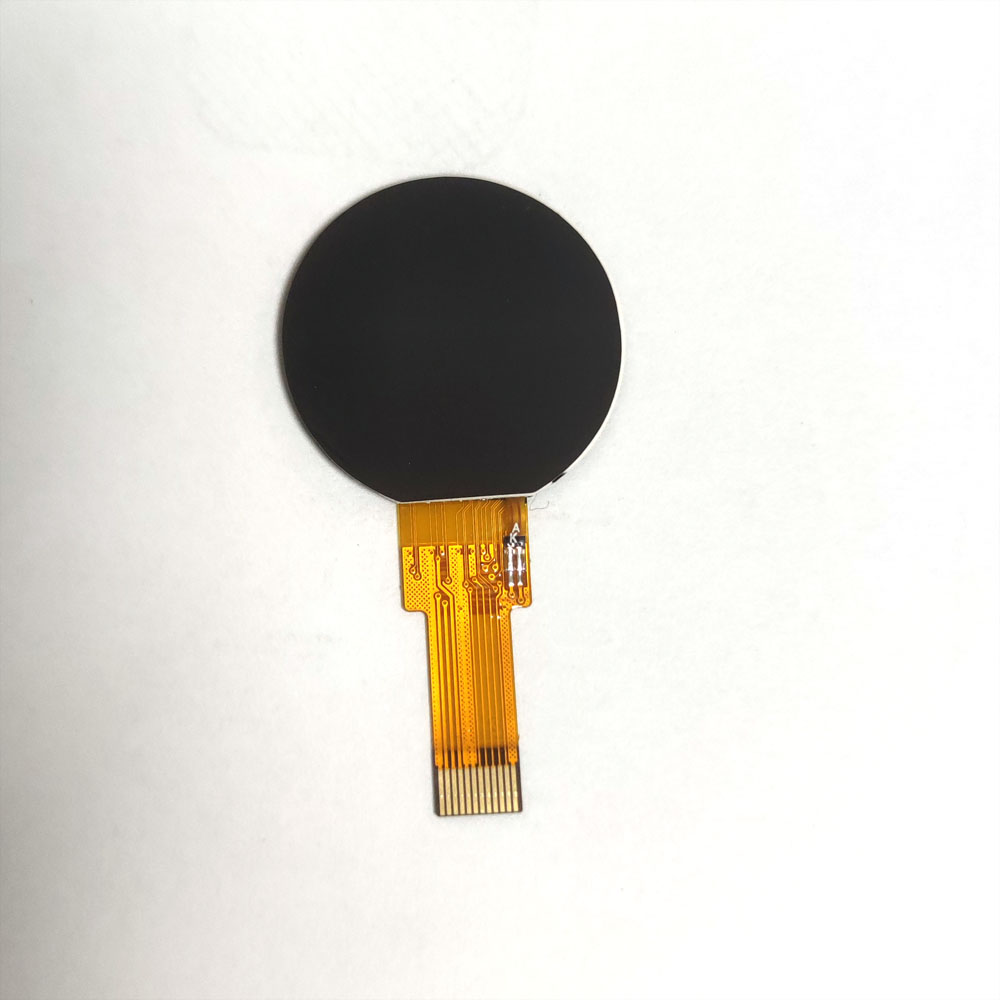

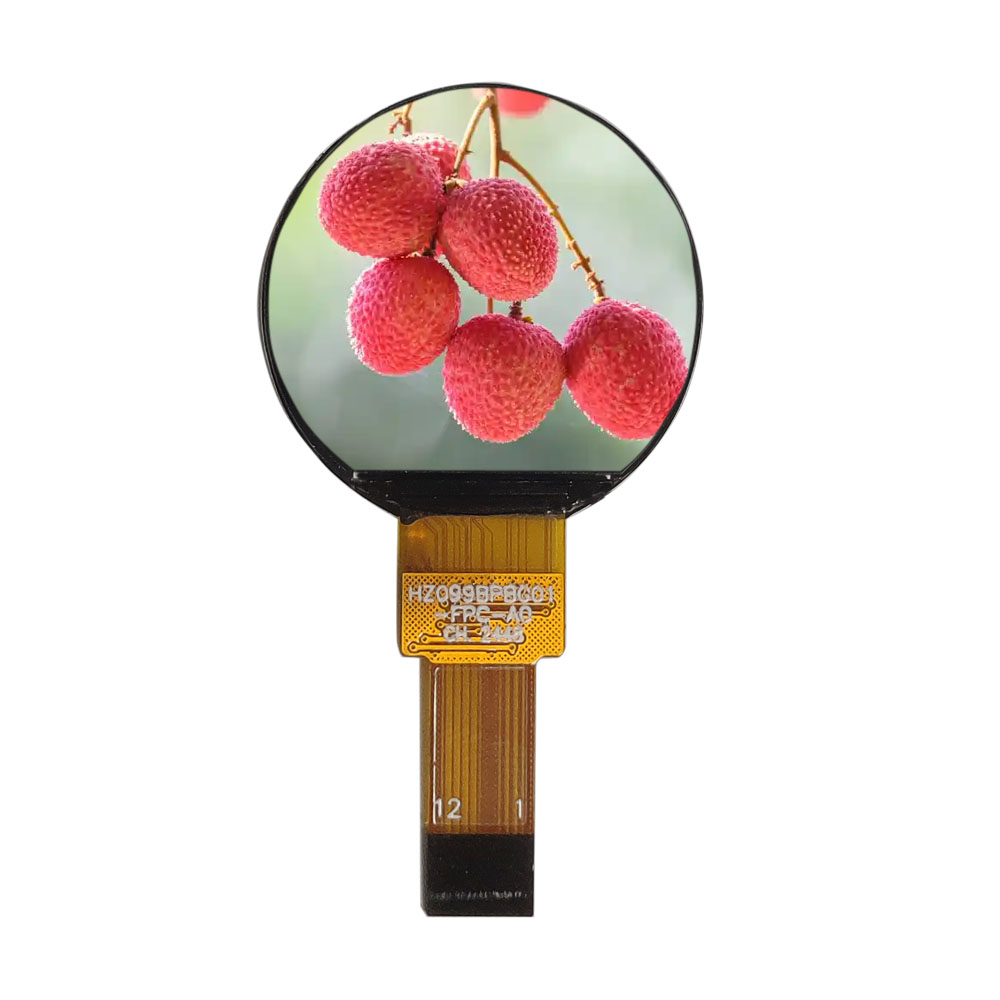

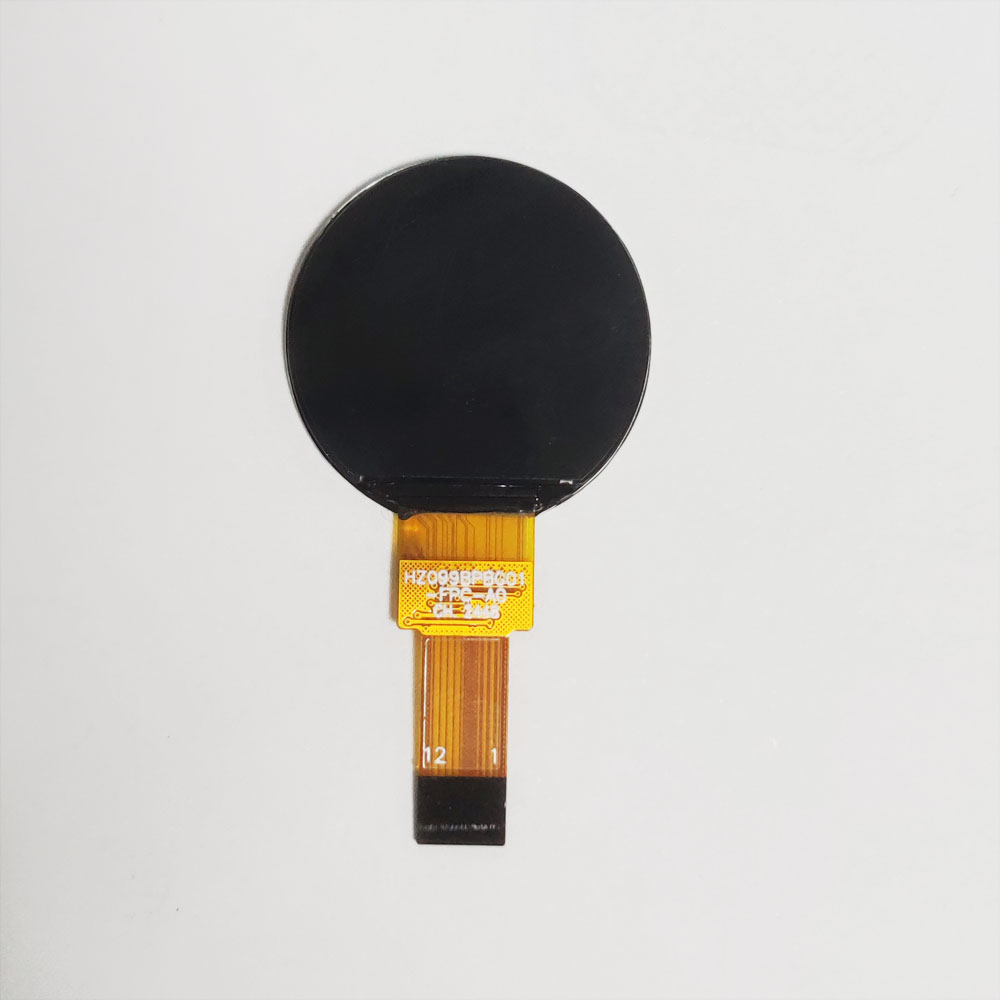

0.99 inch TFT LCD display

Outline size

26.17*26.22*1.86mm

Active area

24.36*21.89mm

Resolution

128*115

Controller

GC9107

Interface

SPI

Driving Voltage

2.8V

backlight

LED*2,white

Operating temperature

-20~70 ℃

Storage temperature

-30~80 ℃
