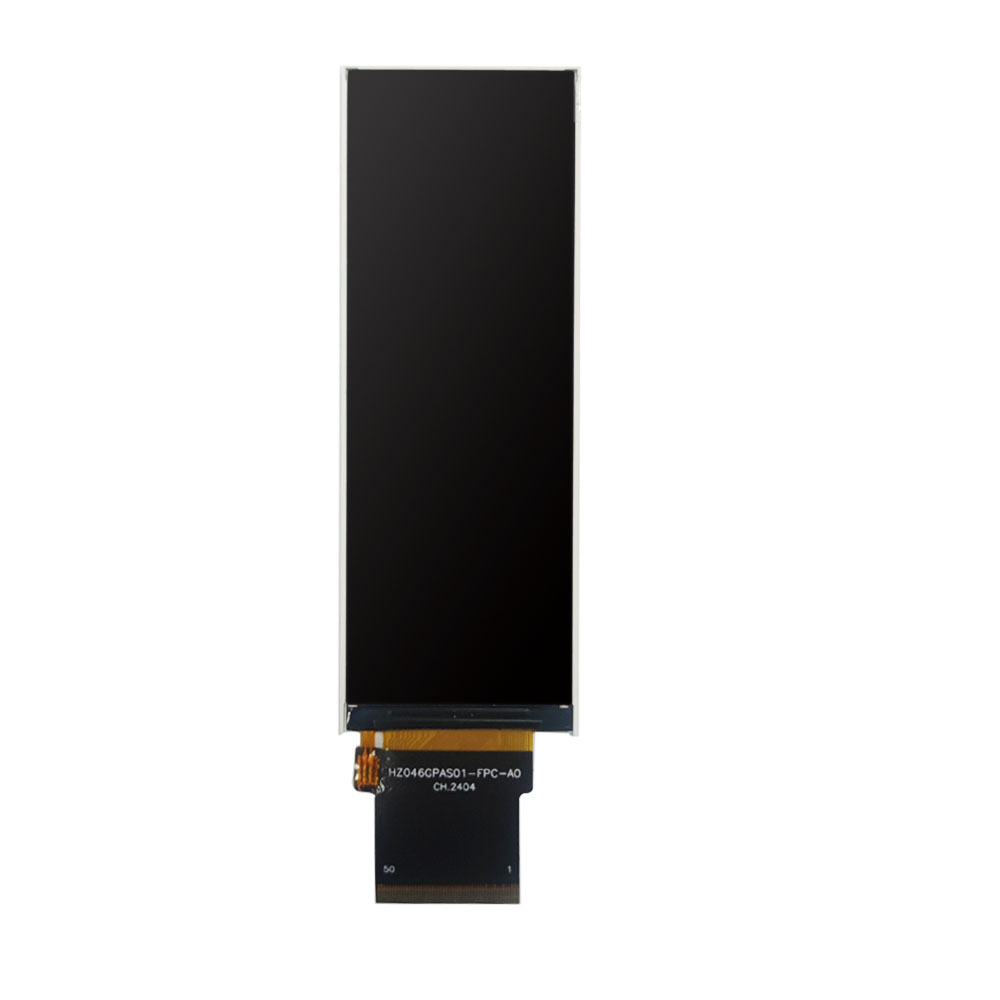

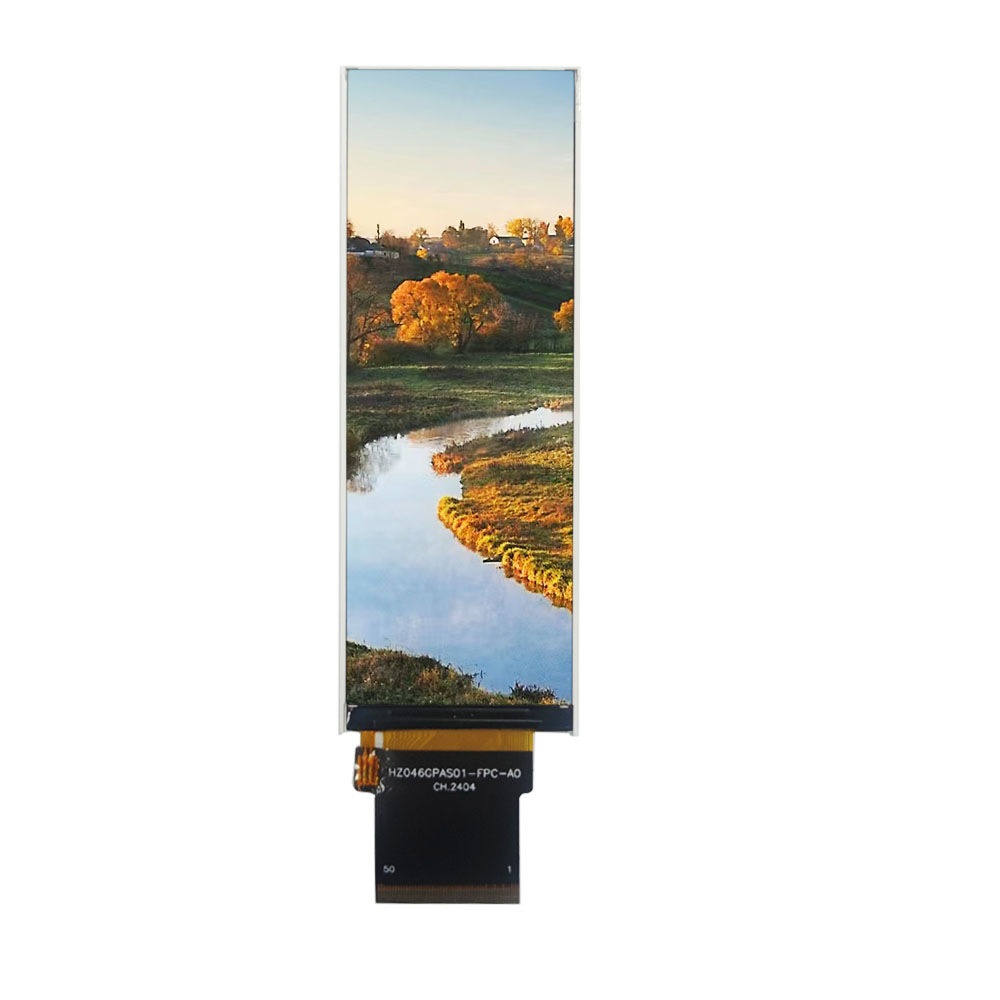

4.58" TFT display

Availability:
Quantity:
  • HZ043WPBS

  • 480*800

  • 60.05*102.5*1.86

  • 56.16*93.6

  • 56.16*93.6

  • ST7701

  • HZ043WPBS03-A0.pdf

The full name of TFT is Thin Film Transistor. Each pixel on TFT display is driven by a thin film transistor, The TFT display is a type of active matrix liquid crystal display device.


Name

4.3 inch TFT LCD display

Outline size

60.05*102.5*1.86mm

Active area

56.16*93.6mm

Resolution

480*800

Controller

ST7701

Interface

MIPI

Driving Voltage

2.8V

backlight

LED*10,white

Operating temperature

-20~70 ℃

Storage temperature

-30~80 ℃
